Vector Images, icon() and path()

Pretty much all UI designers time to time experience need of drawing of non-trivial shapes directly in CSS - icons, non-rectangular elements and their backgrounds.

Lack of such feature leads to appearance of far from being optimal solutions: icon fonts (like font-awesome), crazy attempts to draw non-trivial shapes using CSS border artifacts and excessive use of additional pseudo-elements: ::after and ::before. People are wasting time writing tons of essays on the subject, see how far it can go...

Vector images​

Consider this SVG element:

<path d="c 50,0 50,100 100,100 c 50,0 50,-100 100,-100" fill="#000" />

Note that d attribute value. It defines a path with pretty simple yet powerful format. But just to draw that simple curve SVG requires bunch of DOM elements to be created around it. Not so lightweight for that simple purpose.

Instead of SVG use for such simple purposes Sciter's CSS offers path() and icon() functions and URL schemas.

div {
  background-image: url(path:c 50,0 50,100 100,100 c 50,0 50,-100 100,-100);
  background-repeat: no-repeat;
}

And here is what I did in Sciter, it now supports so called paths and path urls that use exactly that svg's d-path format:

path() images and urls​

div {
  size:300px;
  border:1px solid red;
  background-image: path(c 50,0 50,100 100, 100 c 50,0 50,-100 100,-100);
  background-repeat: no-repeat;
  fill:#000;
}

that above will be rendered as:

vector image

The path() can be used in places where URL is expected but with path: URL schema.

<img src="path:c 50,0 50,100 100, 100 c 50,0 50,-100 100,-100"/>

That image above, with this style:

img {
    border:1px dotted;
    fill:gold;
    stroke:red;
    stroke-width: 3px;
}

will be rendered as

vector image

icon() images and urls​

The icon() vector images is a variant of the path() but with two variants:

Stock icons​

Sciter contains internal library of stock vector images used in decoration of built-in components.

Such stock imagese are accessible as icon(name) "functions" and as URLs icon:name. Here is an image of right pointing chevron:

  <img src="icon:right" />

All stock icon names are listed in usciter app from Sciter SDK:

stock icons

Custom icons​

Application also can define icons on their side using icon( vbox ; d-path ) construct, where:

  • vbox is a string that contains 4 numbers = the position and dimension, in user space, of an [SVG] viewport - same as svg::viewbox.
  • d-path - path commands of d attribute in SVG.

Therefore if we have source SVG like this:

<svg viewBox="0 0 100 100" xmlns="http://www.w3.org/2000/svg">
  <path
    fill="none"
    stroke="red"
    d="M 10,30
       A 20,20 0,0,1 50,30
       A 20,20 0,0,1 90,30
       Q 90,60 50,90
       Q 10,60 10,30 z" />
</svg>

then its CSS icon equivalent will be

icon.heart {
  foreground-image: icon(0 0 100 100;M 10,30 A 20,20 0,0,1 50,30 A 20,20 0,0,1 90,30 Q 90,60 50,90 Q 10,60 10,30 z );
  foreground-repeat: no-repeat;
  foreground-size: contain;
  fill:none;
  stroke:red;
  stroke-width:1px;
}

that will be rendered as:

custom icon

Public collections of icons​

Google Fonts​

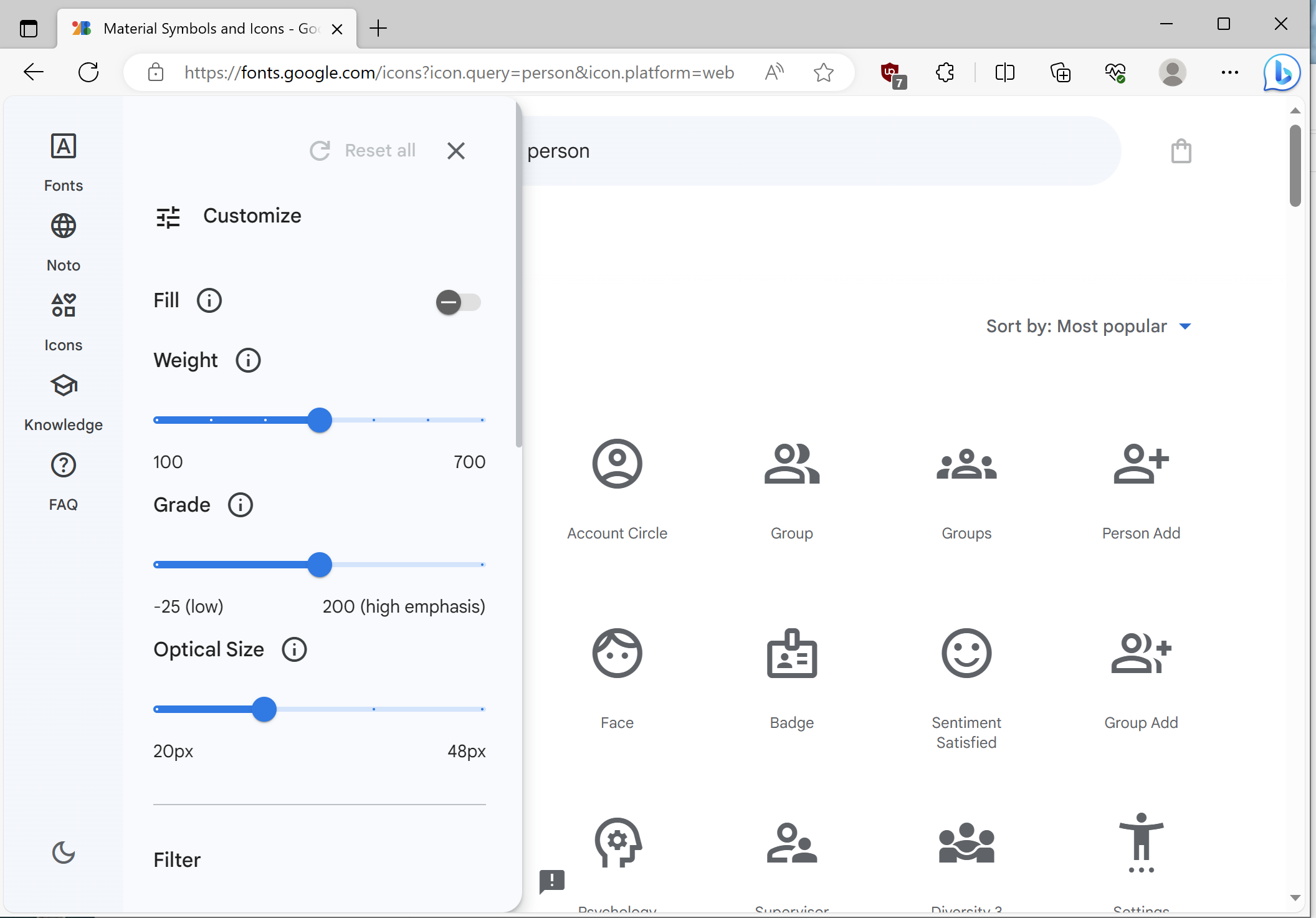

Google Fonts contains excessive set of icons. Individual icons there can be exported / saved as SVGs with different options, ready to be converted to such vector images:

gfonts

Bonus: expandable vector images​

TBD
